Wireless Teddy Camera

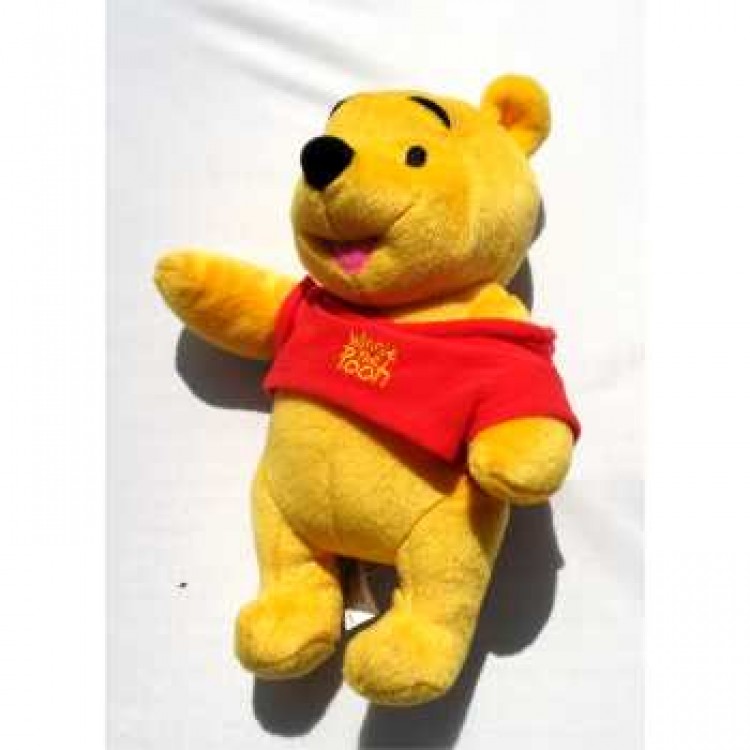

This cute teddy bear is fitted with a colour camera and transmitter which transmits both audio and video to the supplied receiver. The receiver can be placed up to 100 metres away line of sight from the camera and simply plugs into your VCR or TV via the SCART or PHONO Plugs. As no wires are required between camera and receiver this device lends it self to many use in a variety of situations such as monitoring child minders.
2.4 GHz Mini. Transmitter W/Colour Camera
RF output power: CE & BZT compliant
Operating power: 4.8-7.2V
Power consumption: 100mA Antenna: Omni-directional antenna
Transmitting range 100 M (Line-Of-Sight)
Weight: 11 grams
1) Pixels: 365K (PAL), 250K (NTSC)
2) Resolution: Horizontal 380 TV Lines
3) Auto Electronic Exposure: 1/60 —1/2000 sec.
4) Automatic Exposure/Gain/White balance.
5) Mini. Illumination: <3 Lux f 1.2
6) Pin Hole Lens: 5.6mm! field angle: 60 degrees
Note Best results are achieved where there is clear “line of sight” between the mini camera transmitter and the receiver. Try to avoid obstacles such as trees, walls, cars, trucks and buildings. Transmitting over water and in the rain will reduce performance. Interference from certain electronic equipment or the moving human body can also effect the range obtainable.
For best reception position the antennas of the transmitter and receiver 4.5 to 6 feet (1.5 to 2m) above the ground. Please test all devices before final installation because the transmission quality can often be improved by moving the components slightly. Turn off the transmitter and receiver if the system is not in use. Do not touch the antennas when the system is switched on. Do not place the receiver behind a monitor
