SpyIreland-Veh

SpyIreland-Veh

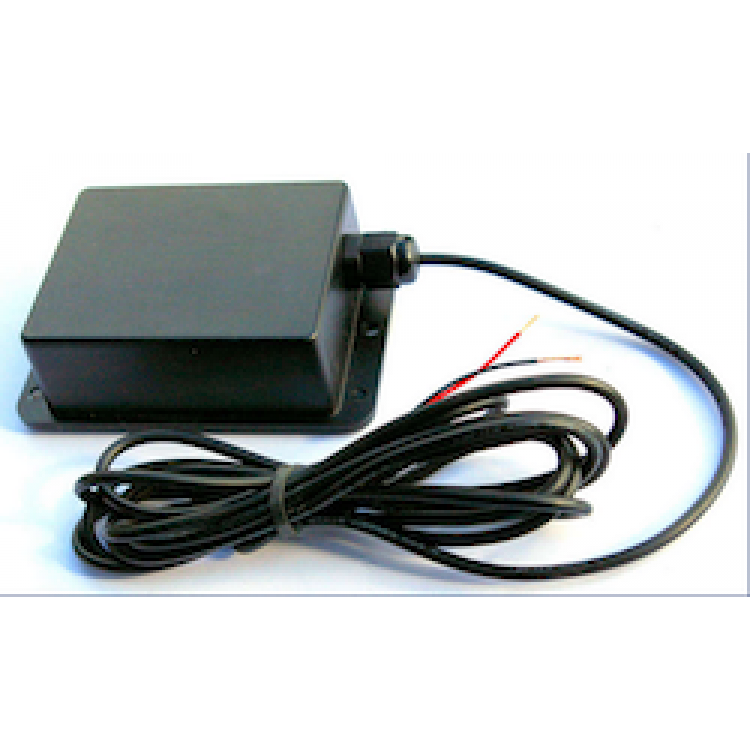

The SpyIreland-Veh is a SIM-ed Prime1 tracker and power adaptor boxed inside an ABS flanged case with an internal Nd magnet, a 2.5m two-core (8-24Vdc & GND) lead through a plastic IP67 cable gland.

It contains a 2.5G modem and a M2M SIM card that will roam in all developed countries worldwide. It contains the latest uBlox GPS satelite navigation chipsets and has large internal GPS and GPRS antennae. It has a cache for storing position reports when it loses GPRS connection, which are then uploaded on reconnection.
Its packaging is water and dust proof to IP67. It has an internal Neodymium magnet for attachment to ferrous (steel) surfaces, and flange screw or tie-wrap holes for attachment to other surface types. Its compact size and shape allows it to be easily placed or hidden in most locations. It must not be completely enclosed by metal, so that its top surface faces the outside world with a path for satelite radio waves to reach it.

The SpyIreland-Veh doesn't have a power on/off button, and so is ordinarily ON and will (re-)charge itself when wired in to a vehicular electrical system by customers. This done by connecting its red (+ve) lead to 12V or 24V and its black lead to battery earth or a chassis fixing connected to earth. When so connected, it will show as charging on the user interfaces. It does not have any external LED windows so as not to attract undue attention to it.



General characteristics
Weight: 165gms Dimensions: Length (incl. flanges) = 118mm; Width=84mm; Thickness=32mm Battery: Lithium polymer (LiPo) 1300mAh 3.7V 7 days autonomous power.
Each device comes with pre-installed free credits for initial usage of 200 position credits; 10 SMS credits

GPS characteristics:
GPS chipset: uBlox all-in-one chipset. 50 channel Class 12 Quad-band operation 850/900/1800/1900MHz Reception - rapid: TTFF (Time To First Fix): 29s (cold start unobstructed sky), 1s (hot start - already started) Precision: +/- 2.5m after first report when warmed up and with a strong GPS signal. Motion detection: 3 axis accelerometer: 8g Electrical interface: 2.6m twin core 1mm leads (Red +ve and Black GND) Status indicator: Internal only, none external On/Off button: Internal only, none external USB port: Internal only, none external

Remote access from the 5 user interfaces, such as theTracking Panel, allows users to:
set the frequency for position reporting; view the emergency/panic button status; define a Geo-Fence zone(s) and turn it/them On/Off; turn On/Off (Arm/Disarm) the Motion detecion function send commands (SMS) to the tracker to change settings; to enter the mobile phone number(s) for SMS messages or email addresses of the alert recipients.
